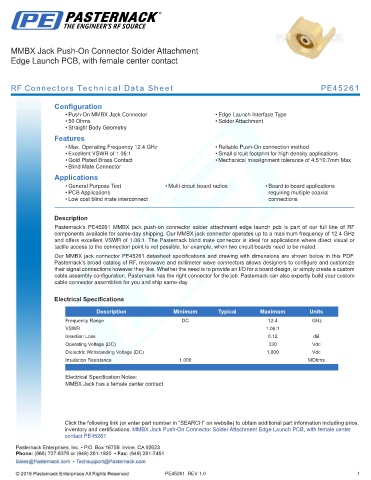

MMBX Jack Push-On Connector Solder Attachment
Edge Launch PCB, with female center contact

RF Connectors Technical Data Sheet PE45261

Configuration
• Push-On MMBX Jack Connector • Edge Launch Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 12.4 GHz • Reliable Push-On connection method
• Excellent VSWR of 1.06:1 • Small circuit footprint for high density applications
• Gold Plated Brass Contact • Mechanical misalignment tolerance of 4.5°/0.7mm Max
• Blind Mate Connector
Applications
• General Purpose Test • Multi circuit board radios • Board to board applications
• PCB Applications requiring multiple coaxial
• Low cost blind mate interconnect connections
.
Description
Pasternack’s PE45261 MMBX jack push-on connector solder attachment edge launch pcb is part of our full line of RF
components available for same-day shipping. Our MMBX jack connector operates up to a maximum frequency of 12.4 GHz
and offers excellent VSWR of 1.06:1. The Pasternack blind mate connector is ideal for applications where direct visual or
tactile access to the connection point is not possible, for example, when two circuit boards need to be mated.
Our MMBX jack connector PE45261 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable connector assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 12.4 GHz
VSWR 1.06:1
Insertion Loss 0.12 dB
Operating Voltage (DC) 330 Vdc
Dielectric Withstanding Voltage (DC) 1,000 Vdc
Insulation Resistance 1,000 MOhms
.
Electrical Specification Notes:
MMBX Jack has a female center contact

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMBX Jack Push-On Connector Solder Attachment Edge Launch PCB, with female center
contact PE45261
