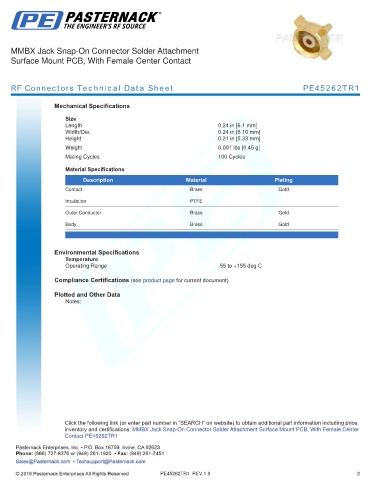

MMBX Jack Snap-On Connector Solder Attachment
Surface Mount PCB, With Female Center Contact

RF Connectors Technical Data Sheet PE45262TR1

Mechanical Specifications

Size
Length 0.24 in [6.1 mm]
Width/Dia. 0.24 in [6.10 mm]
Height 0.21 in [5.33 mm]
.
Weight 0.001 lbs [0.45 g]
.
Mating Cycles 100 Cycles
Material Specifications
Description Material Plating
Contact Brass Gold

Insulation PTFE
Outer Conductor Brass Gold

Body Brass Gold
.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMBX Jack Snap-On Connector Solder Attachment Surface Mount PCB, With Female Center
Contact PE45262TR1

PE45262TR1 REV 1.0 2
