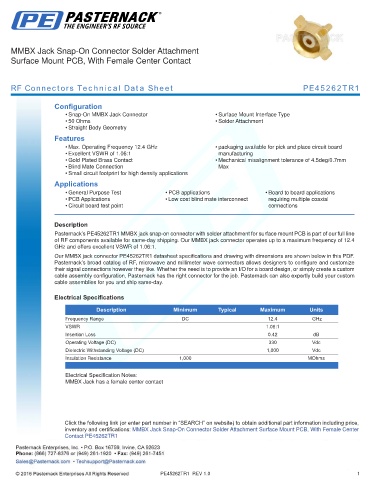

MMBX Jack Snap-On Connector Solder Attachment
Surface Mount PCB, With Female Center Contact

RF Connectors Technical Data Sheet PE45262TR1

Configuration
• Snap-On MMBX Jack Connector • Surface Mount Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 12.4 GHz • packaging available for pick and place circuit board
• Excellent VSWR of 1.06:1 manufacturing
• Gold Plated Brass Contact • Mechanical misalignment tolerance of 4.5deg/0.7mm
• Blind Mate Connection Max
• Small circuit footprint for high density applications
Applications
• General Purpose Test • PCB applications • Board to board applications
• PCB Applications • Low cost blind mate interconnect requiring multiple coaxial
• Circuit board test point connections
.
Description
Pasternack’s PE45262TR1 MMBX jack snap-on connector with solder attachment for surface mount PCB is part of our full line
of RF components available for same-day shipping. Our MMBX jack connector operates up to a maximum frequency of 12.4
GHz and offers excellent VSWR of 1.06:1.
Our MMBX jack connector PE45262TR1 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 12.4 GHz
VSWR 1.06:1
Insertion Loss 0.42 dB
Operating Voltage (DC) 330 Vdc
Dielectric Withstanding Voltage (DC) 1,000 Vdc
Insulation Resistance 1,000 MOhms
.
Electrical Specification Notes:
MMBX Jack has a female center contact

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMBX Jack Snap-On Connector Solder Attachment Surface Mount PCB, With Female Center
Contact PE45262TR1

PE45262TR1 REV 1.0 1
