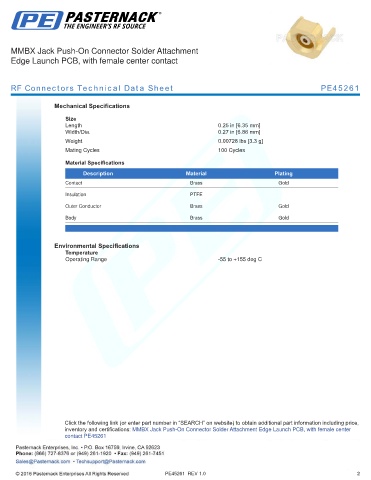

MMBX Jack Push-On Connector Solder Attachment
Edge Launch PCB, with female center contact

RF Connectors Technical Data Sheet PE45261

Mechanical Specifications

Size
Length 0.25 in [6.35 mm]
Width/Dia. 0.27 in [6.86 mm]
.
Weight 0.00728 lbs [3.3 g]
.
Mating Cycles 100 Cycles
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation PTFE

Outer Conductor Brass Gold
Body Brass Gold
.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMBX Jack Push-On Connector Solder Attachment Edge Launch PCB, with female center
contact PE45261

PE45261 REV 1.0 2
