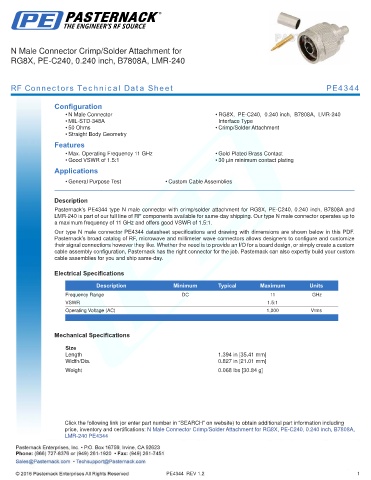

N Male Connector Crimp/Solder Attachment for
RG8X, PE-C240, 0.240 inch, B7808A, LMR-240

RF Connectors Technical Data Sheet PE4344

Configuration
• N Male Connector • RG8X, PE-C240, 0.240 inch, B7808A, LMR-240
• MIL-STD-348A Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 11 GHz • Gold Plated Brass Contact
• Good VSWR of 1.5:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4344 type N male connector with crimp/solder attachment for RG8X, PE-C240, 0.240 inch, B7808A and
LMR-240 is part of our full line of RF components available for same-day shipping. Our type N male connector operates up to
a maximum frequency of 11 GHz and offers good VSWR of 1.5:1.
Our type N male connector PE4344 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.5:1
Operating Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 1.394 in [35.41 mm]
Width/Dia. 0.827 in [21.01 mm]
.
Weight 0.068 lbs [30.84 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Male Connector Crimp/Solder Attachment for RG8X, PE-C240, 0.240 inch, B7808A,
LMR-240 PE4344

PE4344 REV 1.2 1
