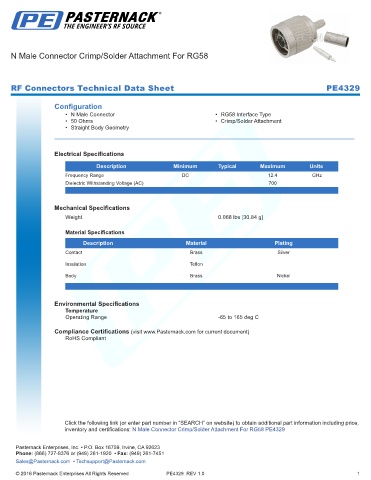

N Male Connector Crimp/Solder Attachment For RG58

RF Connectors Technical Data Sheet PE4329

Configuration
• N Male Connector • RG58 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 12.4 GHz
Dielectric Withstanding Voltage (AC) 700
.

Mechanical Specifications
.
Weight 0.068 lbs [30.84 g]
.
Material Specifications
Description Material Plating
Contact Brass Silver

Insulation Teflon
Body Brass Nickel
.

Environmental Specifications
Temperature
Operating Range -65 to 165 deg C

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Connector Crimp/Solder Attachment For RG58 PE4329

PE4329 REV 1.0 1
