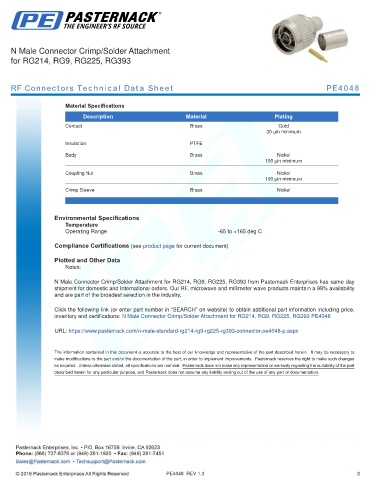

N Male Connector Crimp/Solder Attachment
for RG214, RG9, RG225, RG393

RF Connectors Technical Data Sheet PE4048

Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum

Coupling Nut Brass Nickel
100 µin minimum
Crimp Sleeve Brass Nickel

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

N Male Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Connector Crimp/Solder Attachment for RG214, RG9, RG225, RG393 PE4048

URL: https://www.pasternack.com/n-male-standard-rg214-rg9-rg225-rg393-connector-pe4048-p.aspx

PE4048 REV 1.3 2
