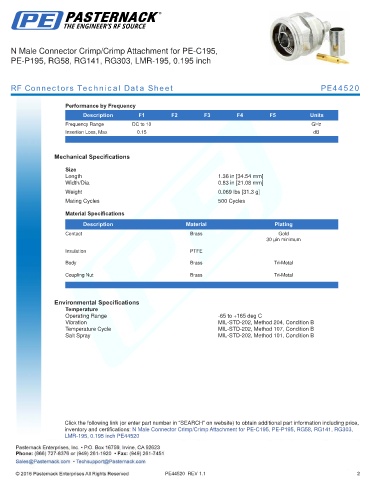

N Male Connector Crimp/Crimp Attachment for PE-C195,
PE-P195, RG58, RG141, RG303, LMR-195, 0.195 inch
RF Connectors Technical Data Sheet PE44520
Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 10 GHz
Insertion Loss, Max 0.15 dB
.
Mechanical Specifications
Size
Length 1.36 in [34.54 mm]
Width/Dia. 0.83 in [21.08 mm]
.
Weight 0.069 lbs [31.3 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum
Insulation PTFE
Body Brass Tri-Metal
Coupling Nut Brass Tri-Metal
.
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Vibration MIL-STD-202, Method 204, Condition B
Temperature Cycle MIL-STD-202, Method 107, Condition B
Salt Spray MIL-STD-202, Method 101, Condition B
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Connector Crimp/Crimp Attachment for PE-C195, PE-P195, RG58, RG141, RG303,
LMR-195, 0.195 inch PE44520
