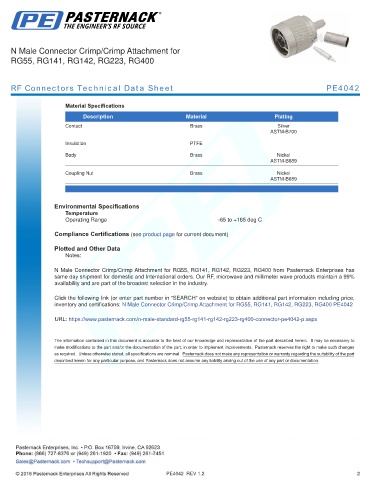

N Male Connector Crimp/Crimp Attachment for
RG55, RG141, RG142, RG223, RG400

RF Connectors Technical Data Sheet PE4042

Material Specifications
Description Material Plating
Contact Brass Silver
ASTM-B700

Insulation PTFE
Body Brass Nickel
ASTM-B689

Coupling Nut Brass Nickel
ASTM-B689
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

N Male Connector Crimp/Crimp Attachment for RG55, RG141, RG142, RG223, RG400 from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Connector Crimp/Crimp Attachment for RG55, RG141, RG142, RG223, RG400 PE4042

URL: https://www.pasternack.com/n-male-standard-rg55-rg141-rg142-rg223-rg400-connector-pe4042-p.aspx

PE4042 REV 1.2 2
