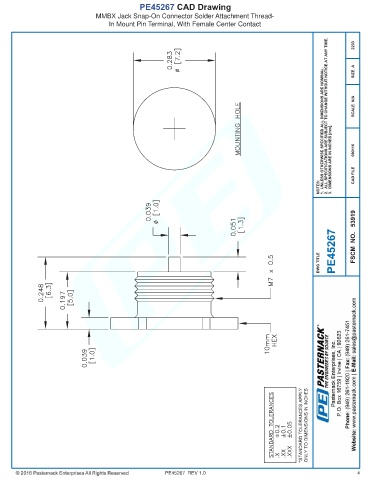

PE45267 CAD Drawing
MMBX Jack Snap-On Connector Solder Attachment Thread-
In Mount Pin Terminal, With Female Center Contact
PE45267 REV 1.0 4
