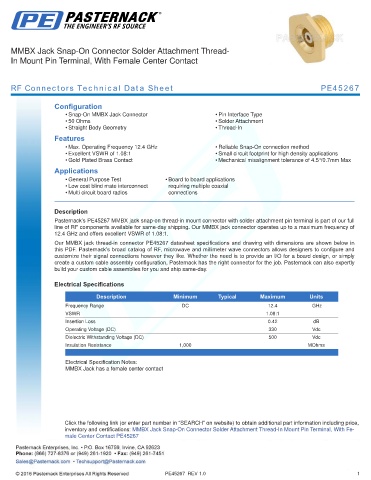

MMBX Jack Snap-On Connector Solder Attachment Thread-
In Mount Pin Terminal, With Female Center Contact

RF Connectors Technical Data Sheet PE45267

Configuration
• Snap-On MMBX Jack Connector • Pin Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry • Thread-In
Features
• Max. Operating Frequency 12.4 GHz • Reliable Snap-On connection method
• Excellent VSWR of 1.08:1 • Small circuit footprint for high density applications
• Gold Plated Brass Contact • Mechanical misalignment tolerance of 4.5°/0.7mm Max
Applications
• General Purpose Test • Board to board applications
• Low cost blind mate interconnect requiring multiple coaxial
• Multi circuit board radios connections
.
Description
Pasternack’s PE45267 MMBX jack snap-on thread-in mount connector with solder attachment pin terminal is part of our full
line of RF components available for same-day shipping. Our MMBX jack connector operates up to a maximum frequency of
12.4 GHz and offers excellent VSWR of 1.08:1.
Our MMBX jack thread-in connector PE45267 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 12.4 GHz
VSWR 1.08:1
Insertion Loss 0.42 dB
Operating Voltage (DC) 330 Vdc
Dielectric Withstanding Voltage (DC) 500 Vdc
Insulation Resistance 1,000 MOhms
.
Electrical Specification Notes:
MMBX Jack has a female center contact

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMBX Jack Snap-On Connector Solder Attachment Thread-In Mount Pin Terminal, With Fe-
male Center Contact PE45267

PE45267 REV 1.0 1
