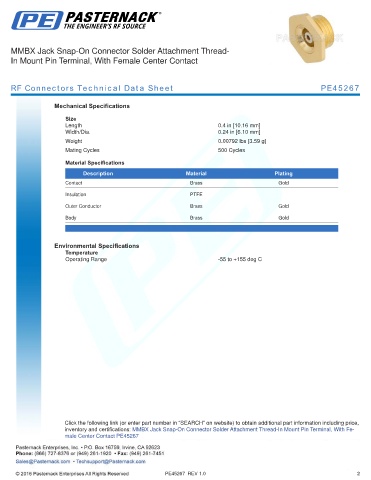

MMBX Jack Snap-On Connector Solder Attachment Thread-
In Mount Pin Terminal, With Female Center Contact

RF Connectors Technical Data Sheet PE45267

Mechanical Specifications

Size
Length 0.4 in [10.16 mm]
Width/Dia. 0.24 in [6.10 mm]
.
Weight 0.00792 lbs [3.59 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation PTFE

Outer Conductor Brass Gold
Body Brass Gold
.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MMBX Jack Snap-On Connector Solder Attachment Thread-In Mount Pin Terminal, With Fe-
male Center Contact PE45267

PE45267 REV 1.0 2
