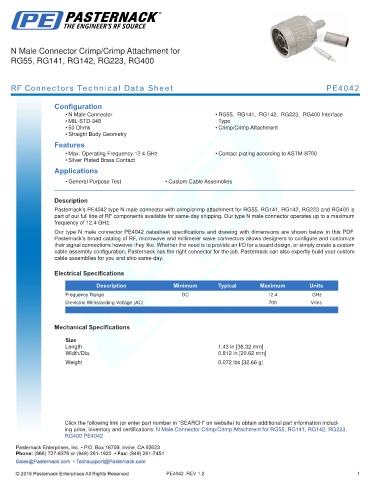

N Male Connector Crimp/Crimp Attachment for
RG55, RG141, RG142, RG223, RG400

RF Connectors Technical Data Sheet PE4042

Configuration
• N Male Connector • RG55, RG141, RG142, RG223, RG400 Interface
• MIL-STD-348 Type
• 50 Ohms • Crimp/Crimp Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 12.4 GHz • Contact plating according to ASTM-B700
• Silver Plated Brass Contact
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4042 type N male connector with crimp/crimp attachment for RG55, RG141, RG142, RG223 and RG400 is
part of our full line of RF components available for same-day shipping. Our type N male connector operates up to a maximum
frequency of 12.4 GHz.
Our type N male connector PE4042 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 12.4 GHz
Dielectric Withstanding Voltage (AC) 700 Vrms
.

Mechanical Specifications
Size
Length 1.43 in [36.32 mm]
Width/Dia. 0.812 in [20.62 mm]
.
Weight 0.072 lbs [32.66 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information includ-
ing price, inventory and certifications: N Male Connector Crimp/Crimp Attachment for RG55, RG141, RG142, RG223,
RG400 PE4042

PE4042 REV 1.2 1
