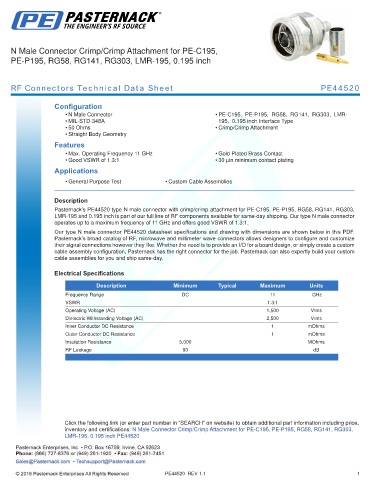

N Male Connector Crimp/Crimp Attachment for PE-C195,
PE-P195, RG58, RG141, RG303, LMR-195, 0.195 inch

RF Connectors Technical Data Sheet PE44520

Configuration
• N Male Connector • PE-C195, PE-P195, RG58, RG141, RG303, LMR-
• MIL-STD-348A 195, 0.195 inch Interface Type
• 50 Ohms • Crimp/Crimp Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 11 GHz • Gold Plated Brass Contact
• Good VSWR of 1.3:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44520 type N male connector with crimp/crimp attachment for PE-C195, PE-P195, RG58, RG141, RG303,
LMR-195 and 0.195 inch is part of our full line of RF components available for same-day shipping. Our type N male connector
operates up to a maximum frequency of 11 GHz and offers good VSWR of 1.3:1.
Our type N male connector PE44520 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.3:1
Operating Voltage (AC) 1,500 Vrms
Dielectric Withstanding Voltage (AC) 2,500 Vrms
Inner Conductor DC Resistance 1 mOhms
Outer Conductor DC Resistance 1 mOhms
Insulation Resistance 5,000 MOhms
RF Leakage 90 dB
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Connector Crimp/Crimp Attachment for PE-C195, PE-P195, RG58, RG141, RG303,
LMR-195, 0.195 inch PE44520

PE44520 REV 1.1 1
