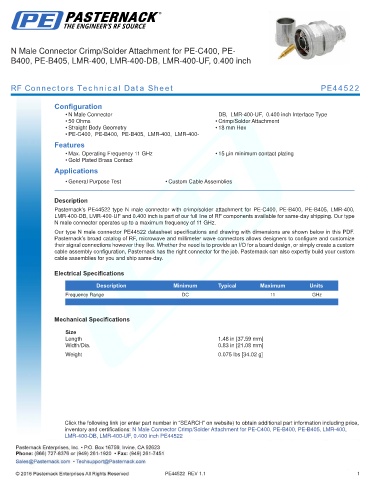

N Male Connector Crimp/Solder Attachment for PE-C400, PE-
B400, PE-B405, LMR-400, LMR-400-DB, LMR-400-UF, 0.400 inch

RF Connectors Technical Data Sheet PE44522

Configuration
• N Male Connector DB, LMR-400-UF, 0.400 inch Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • 18 mm Hex
• PE-C400, PE-B400, PE-B405, LMR-400, LMR-400-
Features
• Max. Operating Frequency 11 GHz • 15 µin minimum contact plating
• Gold Plated Brass Contact
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44522 type N male connector with crimp/solder attachment for PE-C400, PE-B400, PE-B405, LMR-400,
LMR-400-DB, LMR-400-UF and 0.400 inch is part of our full line of RF components available for same-day shipping. Our type
N male connector operates up to a maximum frequency of 11 GHz.
Our type N male connector PE44522 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
.

Mechanical Specifications

Size
Length 1.48 in [37.59 mm]
Width/Dia. 0.83 in [21.08 mm]
.
Weight 0.075 lbs [34.02 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Connector Crimp/Solder Attachment for PE-C400, PE-B400, PE-B405, LMR-400,
LMR-400-DB, LMR-400-UF, 0.400 inch PE44522

PE44522 REV 1.1 1
