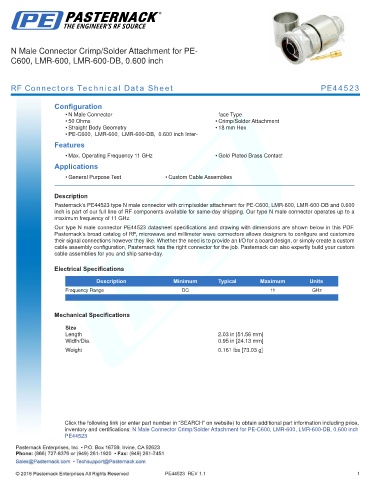

N Male Connector Crimp/Solder Attachment for PE-
C600, LMR-600, LMR-600-DB, 0.600 inch

RF Connectors Technical Data Sheet PE44523

Configuration
• N Male Connector face Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • 18 mm Hex
• PE-C600, LMR-600, LMR-600-DB, 0.600 inch Inter-
Features
• Max. Operating Frequency 11 GHz • Gold Plated Brass Contact
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44523 type N male connector with crimp/solder attachment for PE-C600, LMR-600, LMR-600-DB and 0.600
inch is part of our full line of RF components available for same-day shipping. Our type N male connector operates up to a
maximum frequency of 11 GHz.
Our type N male connector PE44523 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
.

Mechanical Specifications

Size
Length 2.03 in [51.56 mm]
Width/Dia. 0.95 in [24.13 mm]
.
Weight 0.161 lbs [73.03 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Connector Crimp/Solder Attachment for PE-C600, LMR-600, LMR-600-DB, 0.600 inch
PE44523

PE44523 REV 1.1 1
