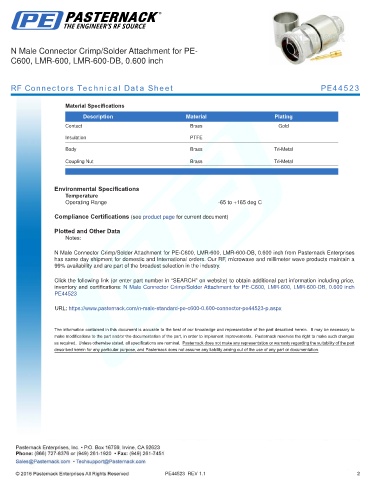

N Male Connector Crimp/Solder Attachment for PE-
C600, LMR-600, LMR-600-DB, 0.600 inch

RF Connectors Technical Data Sheet PE44523

Material Specifications
Description Material Plating
Contact Brass Gold

Insulation PTFE
Body Brass Tri-Metal

Coupling Nut Brass Tri-Metal
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

N Male Connector Crimp/Solder Attachment for PE-C600, LMR-600, LMR-600-DB, 0.600 inch from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a
99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Connector Crimp/Solder Attachment for PE-C600, LMR-600, LMR-600-DB, 0.600 inch
PE44523

URL: https://www.pasternack.com/n-male-standard-pe-c600-0.600-connector-pe44523-p.aspx

PE44523 REV 1.1 2
