N Male Connector Crimp/Solder Attachment for PE-
B400, PE-B405, PE-C400, LMR-400, 0.400 inch

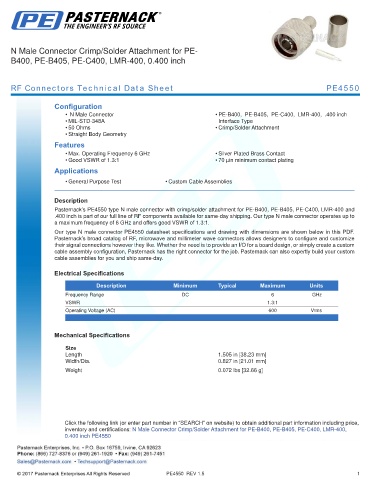

RF Connectors Technical Data Sheet PE4550

Configuration
• N Male Connector • PE-B400, PE-B405, PE-C400, LMR-400, .400 inch
• MIL-STD-348A Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 6 GHz • Silver Plated Brass Contact
• Good VSWR of 1.3:1 • 70 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4550 type N male connector with crimp/solder attachment for PE-B400, PE-B405, PE-C400, LMR-400 and
.400 inch is part of our full line of RF components available for same-day shipping. Our type N male connector operates up to
a maximum frequency of 6 GHz and offers good VSWR of 1.3:1.
Our type N male connector PE4550 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.3:1
Operating Voltage (AC) 600 Vrms
.

Mechanical Specifications

Size
Length 1.505 in [38.23 mm]
Width/Dia. 0.827 in [21.01 mm]
.
Weight 0.072 lbs [32.66 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Connector Crimp/Solder Attachment for PE-B400, PE-B405, PE-C400, LMR-400,
0.400 inch PE4550

PE4550 REV 1.5 1
