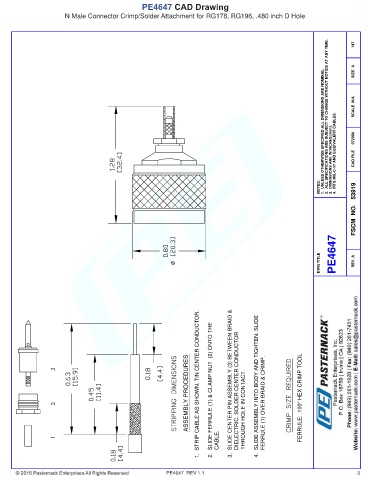

PE4647 CAD Drawing
N Male Connector Crimp/Solder Attachment for RG178, RG196, .480 inch D Hole

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
147

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 072009 CAD FILE

NOTES:
FSCM NO. 53919

DWG TITLE PE4647 REV. A

ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN. TIN CENTER CONDUCTOR. 2. SLIDE FERRULE (1) & CLAMP NUT (2) ONTO THE 3. SLIDE CENTER PIN ASSEMBLY (3) BETWEEN BRAID & DIELECTRIC. SOLDER CENTER CONDUCTOR THROUGH HOLE IN CONTACT. 4. SLIDE ASSEMBLY INTO BODY AND TIGHTEN. SLIDE FERRULE (1) OVER BRAID & CRIMP. FERRULE: .100" HEX CRIMP TOOL

CABLE.
