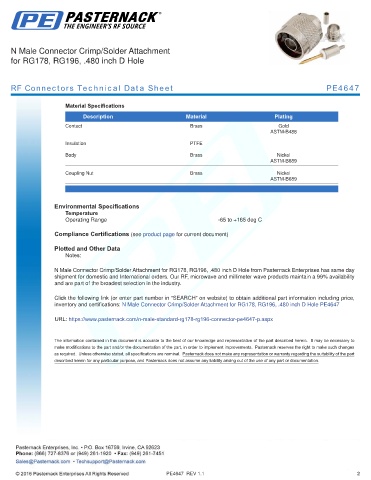

N Male Connector Crimp/Solder Attachment
for RG178, RG196, .480 inch D Hole

RF Connectors Technical Data Sheet PE4647

Material Specifications
Description Material Plating
Contact Brass Gold
ASTM-B488

Insulation PTFE
Body Brass Nickel
ASTM-B689

Coupling Nut Brass Nickel
ASTM-B689
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

N Male Connector Crimp/Solder Attachment for RG178, RG196, .480 inch D Hole from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Connector Crimp/Solder Attachment for RG178, RG196, .480 inch D Hole PE4647

URL: https://www.pasternack.com/n-male-standard-rg178-rg196-connector-pe4647-p.aspx

PE4647 REV 1.1 2
