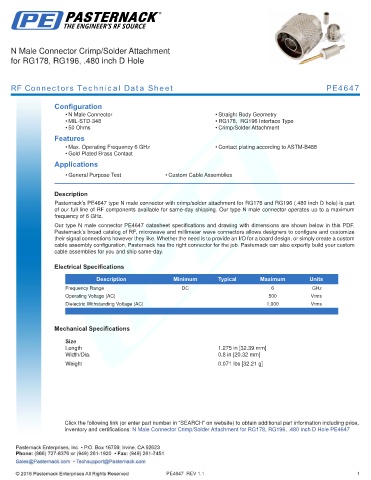

N Male Connector Crimp/Solder Attachment
for RG178, RG196, .480 inch D Hole

RF Connectors Technical Data Sheet PE4647

Configuration
• N Male Connector • Straight Body Geometry
• MIL-STD-348 • RG178, RG196 Interface Type
• 50 Ohms • Crimp/Solder Attachment
Features
• Max. Operating Frequency 6 GHz • Contact plating according to ASTM-B488
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4647 type N male connector with crimp/solder attachment for RG178 and RG196 (.480 inch D hole) is part
of our full line of RF components available for same-day shipping. Our type N male connector operates up to a maximum
frequency of 6 GHz.
Our type N male connector PE4647 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
.

Mechanical Specifications

Size
Length 1.275 in [32.39 mm]
Width/Dia. 0.8 in [20.32 mm]
.
Weight 0.071 lbs [32.21 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Connector Crimp/Solder Attachment for RG178, RG196, .480 inch D Hole PE4647

PE4647 REV 1.1 1
