N Male Connector Crimp/Solder Attachment
for RG223, RG142, RG400, RG55

RF Connectors

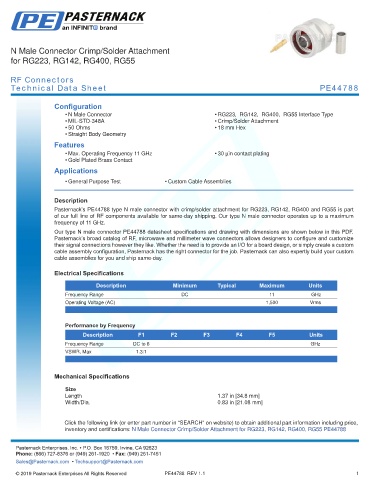

Technical Data Sheet PE44788

Configuration
• N Male Connector • RG223, RG142, RG400, RG55 Interface Type
• MIL-STD-348A • Crimp/Solder Attachment
• 50 Ohms • 18 mm Hex
• Straight Body Geometry
Features
• Max. Operating Frequency 11 GHz • 30 µin contact plating
• Gold Plated Brass Contact
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44788 type N male connector with crimp/solder attachment for RG223, RG142, RG400 and RG55 is part
of our full line of RF components available for same-day shipping. Our type N male connector operates up to a maximum
frequency of 11 GHz.
Our type N male connector PE44788 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
Operating Voltage (AC) 1,500 Vrms
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 6 GHz
VSWR, Max 1.3:1
.

Mechanical Specifications

Size
Length 1.37 in [34.8 mm]
Width/Dia. 0.83 in [21.08 mm]
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Connector Crimp/Solder Attachment for RG223, RG142, RG400, RG55 PE44788 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44788 REV 1.1 1
