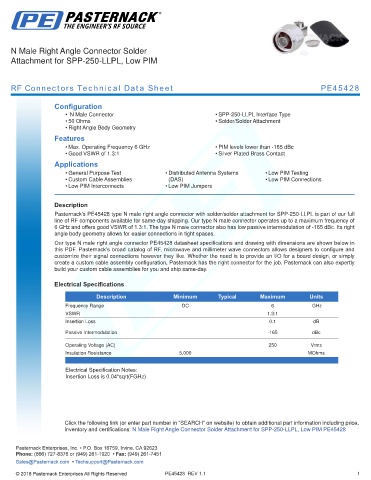

N Male Right Angle Connector Solder
Attachment for SPP-250-LLPL, Low PIM

RF Connectors Technical Data Sheet PE45428

Configuration
• N Male Connector • SPP-250-LLPL Interface Type
• 50 Ohms • Solder/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 6 GHz • PIM levels lower than -165 dBc
• Good VSWR of 1.3:1 • Silver Plated Brass Contact
Applications
• General Purpose Test • Distributed Antenna Systems • Low PIM Testing
• Custom Cable Assemblies (DAS) • Low PIM Connections
• Low PIM Interconnects • Low PIM Jumpers
.
Description
Pasternack’s PE45428 type N male right angle connector with solder/solder attachment for SPP-250-LLPL is part of our full
line of RF components available for same-day shipping. Our type N male connector operates up to a maximum frequency of
6 GHz and offers good VSWR of 1.3:1. The type N male connector also has low passive intermodulation of -165 dBc. Its right
angle body geometry allows for easier connections in tight spaces.
Our type N male right angle connector PE45428 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.3:1
Insertion Loss 0.1 dB
Passive Intermodulation -165 dBc
Operating Voltage (AC) 250 Vrms
Insulation Resistance 5,000 MOhms
.
Electrical Specification Notes:
Insertion Loss is 0.04*sqrt(FGHz)
.
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle Connector Solder Attachment for SPP-250-LLPL, Low PIM PE45428 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45428 REV 1.1 1
