N Male Right Angle Connector Solder Attachment
for PE-SR402AL, PE-SR402FL, RG402

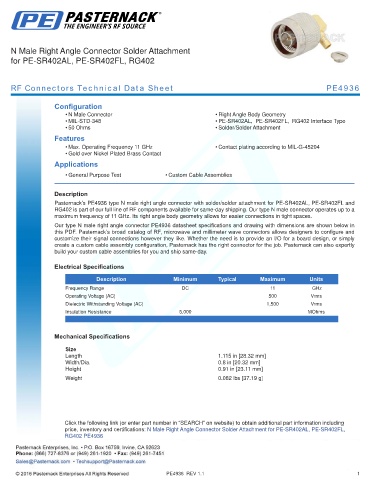

RF Connectors Technical Data Sheet PE4936

Configuration
• N Male Connector • Right Angle Body Geometry
• MIL-STD-348 • PE-SR402AL, PE-SR402FL, RG402 Interface Type
• 50 Ohms • Solder/Solder Attachment
Features
• Max. Operating Frequency 11 GHz • Contact plating according to MIL-G-45204
• Gold over Nickel Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4936 type N male right angle connector with solder/solder attachment for PE-SR402AL, PE-SR402FL and
RG402 is part of our full line of RF components available for same-day shipping. Our type N male connector operates up to a
maximum frequency of 11 GHz. Its right angle body geometry allows for easier connections in tight spaces.
Our type N male right angle connector PE4936 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
Operating Voltage (AC) 500 Vrms
Dielectric Withstanding Voltage (AC) 1,500 Vrms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications

Size
Length 1.115 in [28.32 mm]
Width/Dia. 0.8 in [20.32 mm]
Height 0.91 in [23.11 mm]
.
Weight 0.082 lbs [37.19 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Male Right Angle Connector Solder Attachment for PE-SR402AL, PE-SR402FL,
RG402 PE4936

PE4936 REV 1.1 1
