Page 2558 - 1.0/2.3 to SHV RF Connector Datasheets
P. 2558

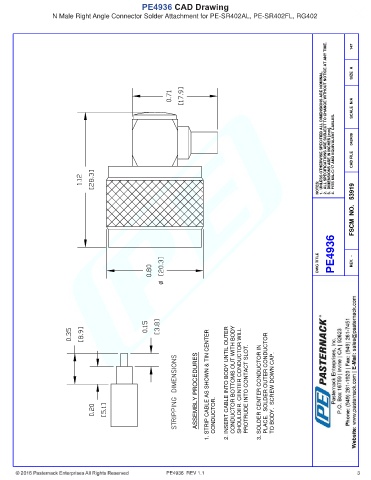

PE4936 CAD Drawing
N Male Right Angle Connector Solder Attachment for PE-SR402AL, PE-SR402FL, RG402
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
147
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042409 CAD FILE
NOTES:
FSCM NO. 53919
DWG TITLE PE4936 REV. -
ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN & TIN CENTER CONDUCTOR. 2. INSERT CABLE INTO BODY UNTIL OUTER CONDUCTOR BOTTOMS OUT WITH BODY SHOULDER. CENTER CONDUCTOR WILL PROTRUDE INTO CONTACT SLOT. 3. SOLDER CENTER CONDUCTOR IN PLACE. SOLDER OUTER CONDUCTOR TO BODY. SCREW DOWN CAP.
PE4936 REV 1.1 3
