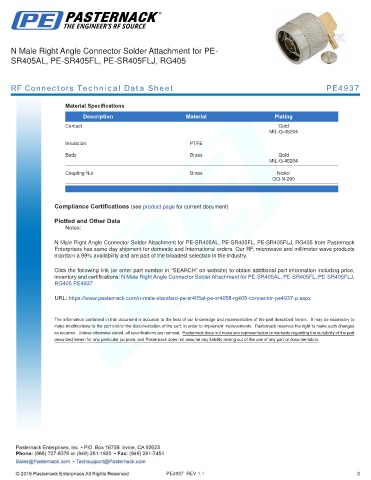

N Male Right Angle Connector Solder Attachment for PE-
SR405AL, PE-SR405FL, PE-SR405FLJ, RG405

RF Connectors Technical Data Sheet PE4937

Material Specifications
Description Material Plating
Contact Gold
MIL-G-45204

Insulation PTFE
Body Brass Gold
MIL-G-45204

Coupling Nut Brass Nickel
QQ-N-290
.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

N Male Right Angle Connector Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ, RG405 from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle Connector Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ,
RG405 PE4937

URL: https://www.pasternack.com/n-male-standard-pe-sr405al-pe-sr405fl-rg405-connector-pe4937-p.aspx

PE4937 REV 1.1 2
