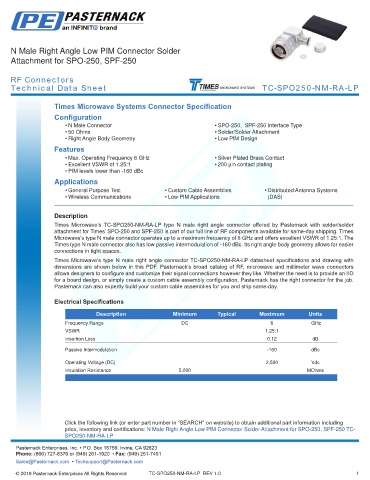

N Male Right Angle Low PIM Connector Solder
Attachment for SPO-250, SPF-250

RF Connectors
Technical Data Sheet TC-SPO250-NM-RA-LP

Times Microwave Systems Connector Specification
Configuration
• N Male Connector • SPO-250, SPF-250 Interface Type
• 50 Ohms • Solder/Solder Attachment
• Right Angle Body Geometry • Low PIM Design
Features
• Max. Operating Frequency 6 GHz • Silver Plated Brass Contact
• Excellent VSWR of 1.25:1 • 200 µin contact plating
• PIM levels lower than -160 dBc
Applications
• General Purpose Test • Custom Cable Assemblies • Distributed Antenna Systems
• Wireless Communications • Low PIM Applications (DAS)
.
Description
Times Microwave’s TC-SPO250-NM-RA-LP type N male right angle connector offered by Pasternack with solder/solder
attachment for Times’ SPO-250 and SPF-250 is part of our full line of RF components available for same-day shipping. Times
Microwave’s type N male connector operates up to a maximum frequency of 6 GHz and offers excellent VSWR of 1.25:1. The
Times type N male connector also has low passive intermodulation of -160 dBc. Its right angle body geometry allows for easier
connections in tight spaces.
Times Microwave’s type N male right angle connector TC-SPO250-NM-RA-LP datasheet specifications and drawing with
dimensions are shown below in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors
allows designers to configure and customize their signal connections however they like. Whether the need is to provide an I/O
for a board design, or simply create a custom cable assembly configuration, Pasternack has the right connector for the job.
Pasternack can also expertly build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.25:1
Insertion Loss 0.12 dB

Passive Intermodulation -160 dBc
Operating Voltage (DC) 2,500 Vdc
Insulation Resistance 5,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Male Right Angle Low PIM Connector Solder Attachment for SPO-250, SPF-250 TC-
-
SPO250-NM-RA-LP Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

TC-SPO250-NM-RA-LP REV 1.0 1
