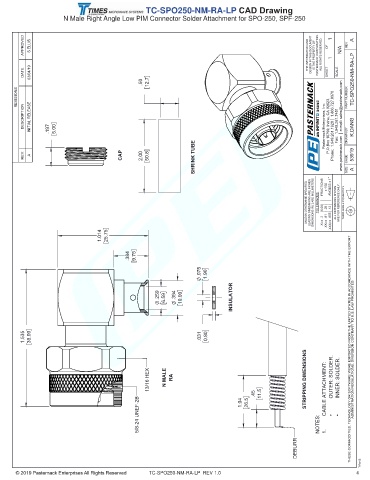

TC-SPO250-NM-RA-LP CAD Drawing
N Male Right Angle Low PIM Connector Solder Attachment for SPO-250, SPF-250

APPROVED S.ELLIS THE INFORMATION AND DESIGN IN THIS DOCUMENT IS THE PROPERTY OF PASTERNACK CORPORATION. ALL RIGHTS RESERVED. 1 1 N/A REV A

DATE 03/04/19 SHEET OF SCALE
.50 12.7 TC-SPO250-NM-RA-LP
REVISIONS PART NUMBER

DESCRIPTION INITIAL RELEASE Pasternack Enterprises, Inc. P.O.Box 16759, Irvine, CA 92623. Phone: 1.949.261.1920 │ 1.866.727.8376 Fax: 1.949.261.7451 www.pasternack.com │ e-mail: sales@pasternack.com K.DANG

.197 5.00 DRAWN BY

REV. A CAP 2.00 50.8 SHRINK TUBE CAGE 53919

SIZE A

UNLESS OTHERWISE SPECIFIED LEADING DIMENSIONS ARE INCHES DIMENSIONS IN [ ] ARE MILLIMETERS TOLERANCES: FRACTIONS .2 [5.08] ± 1/32 .01 [ .25 ] ANGLES ± 1° .005 [ .13 ] ALL DIMENSIONS SHOWN ARE FOR REFERENCE ONLY. THIRD-ANGLE PROJECTION

.X=± .XX=± .XXX=±
1.014 25.75

.384 9.75

.075 1.90

INSULATOR
.259 .394
10.00
6.59

1.535 39.00 .031 0.80

THESE COMMODITIES, TECHNOLOGY OR SOFTWARE WERE EXPORTED FROM THE UNITED STATES IN ACCORDANCE WITH THE EXPORT ADMINISTRATION REGULATIONS. DIVERSION CONTRARY TO U.S. LAW PROHIBITED.

13/16 HEX N MALE RA STRIPPING DIMENSIONS OUTER: SOLDER. INNER: SOLDER.

1.04 26.5 .45 11.5 CABLE ATTACHMENT:
5/8-24 UNEF-2B NOTES: • •

1.
Pasternack does not make

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -
DEBURR

T-Rev.B
TC-SPO250-NM-RA-LP REV 1.0 4
