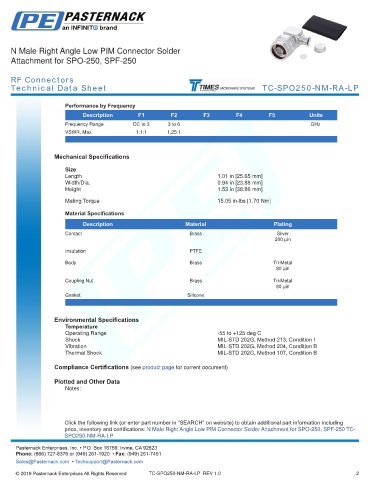

N Male Right Angle Low PIM Connector Solder
Attachment for SPO-250, SPF-250
RF Connectors
Technical Data Sheet TC-SPO250-NM-RA-LP
Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 3 3 to 6 GHz
VSWR, Max 1.1:1 1.25:1
.
Mechanical Specifications
Size
Length 1.01 in [25.65 mm]
Width/Dia. 0.94 in [23.88 mm]
Height 1.53 in [38.86 mm]
.
.
Mating Torque 15.05 in-lbs [1.70 Nm]
Material Specifications
Description Material Plating
Contact Brass Silver
200 µin
Insulation PTFE
Body Brass Tri-Metal
80 µin
Coupling Nut Brass Tri-Metal
80 µin
Gasket Silicone
.
Environmental Specifications
Temperature
Operating Range -55 to +125 deg C
Shock MIL-STD 202G, Method 213, Condition I
Vibration MIL-STD 202G, Method 204, Condition B
Thermal Shock MIL-STD 202G, Method 107, Condition B
Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Male Right Angle Low PIM Connector Solder Attachment for SPO-250, SPF-250 TC-
-
SPO250-NM-RA-LP Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
