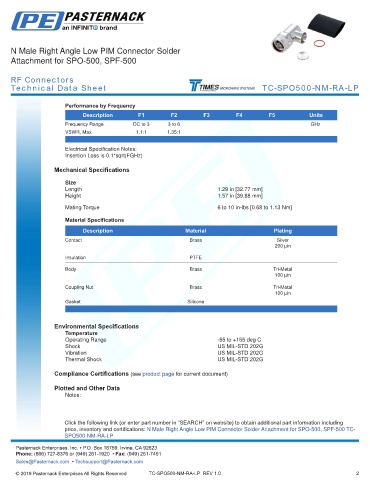

N Male Right Angle Low PIM Connector Solder
Attachment for SPO-500, SPF-500

RF Connectors
Technical Data Sheet TC-SPO500-NM-RA-LP

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 3 3 to 6 GHz
VSWR, Max 1.1:1 1.35:1
.
Electrical Specification Notes:
Insertion Loss is 0.1*sqrt(FGHz)

Mechanical Specifications

Size
Length 1.29 in [32.77 mm]
Height 1.57 in [39.88 mm]
.
.
Mating Torque 6 to 10 in-lbs [0.68 to 1.13 Nm]
Material Specifications
Description Material Plating
Contact Brass Silver
200 µin
Insulation PTFE

Body Brass Tri-Metal
100 µin

Coupling Nut Brass Tri-Metal
100 µin
Gasket Silicone
.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
Shock US MIL-STD 202G
Vibration US MIL-STD 202G
Thermal Shock US MIL-STD 202G

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Male Right Angle Low PIM Connector Solder Attachment for SPO-500, SPF-500 TC-
-
SPO500-NM-RA-LP Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

TC-SPO500-NM-RA-LP REV 1.0 2
