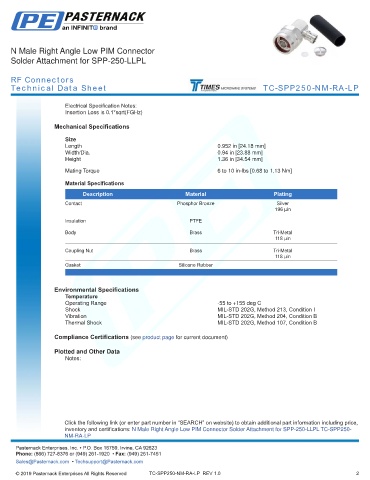

N Male Right Angle Low PIM Connector
Solder Attachment for SPP-250-LLPL

RF Connectors
Technical Data Sheet TC-SPP250-NM-RA-LP

Electrical Specification Notes:
Insertion Loss is 0.1*sqrt(FGHz)

Mechanical Specifications

Size
Length 0.952 in [24.18 mm]
Width/Dia. 0.94 in [23.88 mm]
Height 1.36 in [34.54 mm]
.
.
Mating Torque 6 to 10 in-lbs [0.68 to 1.13 Nm]
Material Specifications
Description Material Plating
Contact Phosphor Bronze Silver
196 µin

Insulation PTFE
Body Brass Tri-Metal
118 µin

Coupling Nut Brass Tri-Metal
118 µin
Gasket Silicone Rubber
.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
Shock MIL-STD 202G, Method 213, Condition I
Vibration MIL-STD 202G, Method 204, Condition B
Thermal Shock MIL-STD 202G, Method 107, Condition B

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle Low PIM Connector Solder Attachment for SPP-250-LLPL TC-SPP250- -
NM-RA-LP Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

TC-SPP250-NM-RA-LP REV 1.0 2
