N Male Right Angle Connector Clamp/Non-Solder
Contact Attachment for 1/2 inch Helical

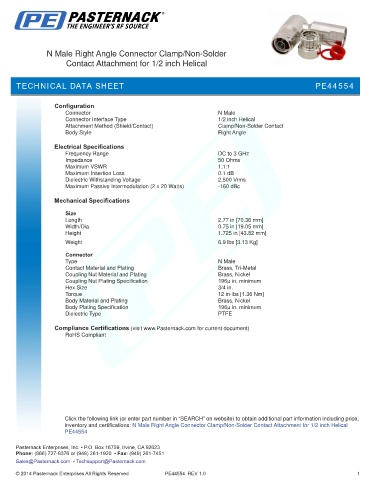

TECHNICAL DATA SHEET PE44554

Configuration
Connector N Male
Connector Interface Type 1/2 inch Helical
Attachment Method (Shield/Contact) Clamp/Non-Solder Contact
Body Style Right Angle

Electrical Specifications
Frequency Range DC to 3 GHz
Impedance 50 Ohms
Maximum VSWR 1.1:1
Maximum Insertion Loss 0.1 dB
Dielectric Withstanding Voltage 2,500 Vrms
Maximum Passive Intermodulation (2 x 20 Watts) -160 dBc
Mechanical Specifications

Size
Length 2.77 in [70.36 mm]
Width/Dia. 0.75 in [19.05 mm]
Height 1.725 in [43.82 mm]
.
Weight 6.9 lbs [3.13 Kg]

Connector
Type N Male
Contact Material and Plating Brass, Tri-Metal
Coupling Nut Material and Plating Brass, Nickel
Coupling Nut Plating Specification 196µ in. minimum
Hex Size 3/4 in.
Torque 12 in-lbs [1.36 Nm]
Body Material and Plating Brass, Nickel
Body Plating Specification 196µ in. minimum
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle Connector Clamp/Non-Solder Contact Attachment for 1/2 inch Helical
PE44554
