N Male Right Angle Connector Solder Attachment for PE-
SR405AL, PE-SR405FL, PE-SR405FLJ, RG405

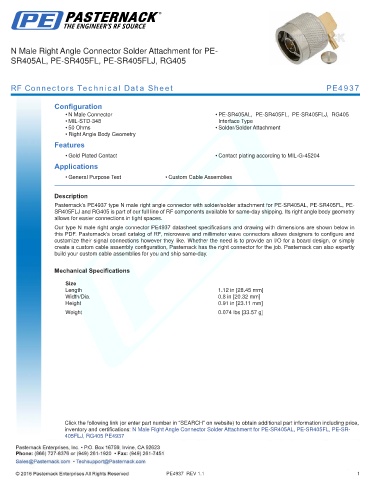

RF Connectors Technical Data Sheet PE4937

Configuration
• N Male Connector • PE-SR405AL, PE-SR405FL, PE-SR405FLJ, RG405
• MIL-STD-348 Interface Type
• 50 Ohms • Solder/Solder Attachment
• Right Angle Body Geometry
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4937 type N male right angle connector with solder/solder attachment for PE-SR405AL, PE-SR405FL, PE-
SR405FLJ and RG405 is part of our full line of RF components available for same-day shipping. Its right angle body geometry
allows for easier connections in tight spaces.
Our type N male right angle connector PE4937 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.12 in [28.45 mm]
Width/Dia. 0.8 in [20.32 mm]
Height 0.91 in [23.11 mm]
.
Weight 0.074 lbs [33.57 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle Connector Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR-
405FLJ, RG405 PE4937

PE4937 REV 1.1 1
