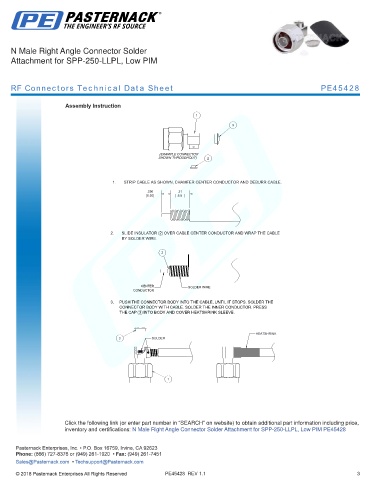

N Male Right Angle Connector Solder
Attachment for SPP-250-LLPL, Low PIM
RF Connectors Technical Data Sheet PE45428
Assembly Instruction
1
3
(EXAMPLE CONNECTOR
SHOWN THROUGHOUT) 2
1. STRIP CABLE AS SHOWN, CHAMFER CENTER CONDUCTOR AND DEBURR CABLE.
.256 .31
6.50 8.0
2. SLIDE INSULATOR 2 OVER CABLE CENTER CONDUCTOR AND WRAP THE CABLE
BY SOLDER WIRE.
2
CENTER SOLDER WIRE
CONDUCTOR
3. PUSH THE CONNECTOR BODY INTO THE CABLE, UNTIL IT STOPS. SOLDER THE
CONNECTOR BODY WITH CABLE. SOLDER THE INNER CONDUCTOR. PRESS
THE CAP 3 INTO BODY AND COVER HEATSHRINK SLEEVE.
HEATSHRINK
3 SOLDER
1
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Male Right Angle Connector Solder Attachment for SPP-250-LLPL, Low PIM PE45428 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.
PE45428 REV 1.1 3
