N Female Connector Crimp/Solder Attachment for PE-C195,
PE-P195, RG58, RG141, RG303, LMR-195, 0.195 inch

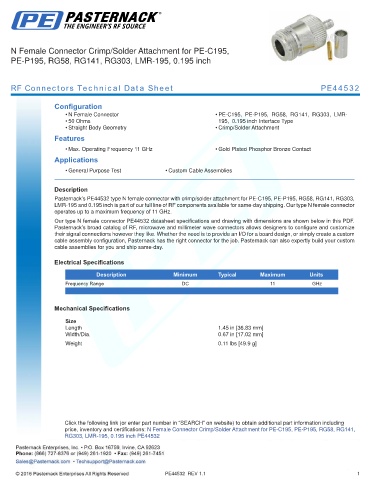

RF Connectors Technical Data Sheet PE44532

Configuration
• N Female Connector • PE-C195, PE-P195, RG58, RG141, RG303, LMR-
• 50 Ohms 195, 0.195 inch Interface Type
• Straight Body Geometry • Crimp/Solder Attachment
Features
• Max. Operating Frequency 11 GHz • Gold Plated Phosphor Bronze Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44532 type N female connector with crimp/solder attachment for PE-C195, PE-P195, RG58, RG141, RG303,
LMR-195 and 0.195 inch is part of our full line of RF components available for same-day shipping. Our type N female connector
operates up to a maximum frequency of 11 GHz.
Our type N female connector PE44532 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
.

Mechanical Specifications

Size
Length 1.45 in [36.83 mm]
Width/Dia. 0.67 in [17.02 mm]
.
Weight 0.11 lbs [49.9 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Female Connector Crimp/Solder Attachment for PE-C195, PE-P195, RG58, RG141,
RG303, LMR-195, 0.195 inch PE44532
