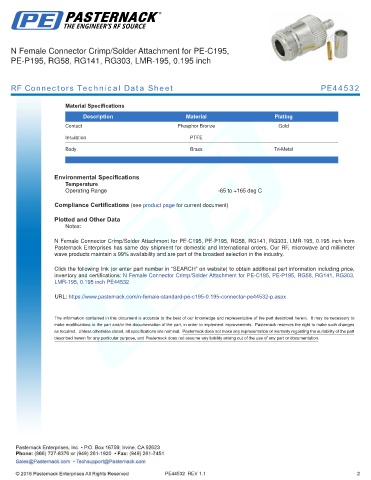

Page 2594 - 1.0/2.3 to SHV RF Connector Datasheets

N Female Connector Crimp/Solder Attachment for PE-C195,
PE-P195, RG58, RG141, RG303, LMR-195, 0.195 inch

RF Connectors Technical Data Sheet PE44532

Material Specifications
Description Material Plating
Contact Phosphor Bronze Gold

Insulation PTFE
Body Brass Tri-Metal
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

N Female Connector Crimp/Solder Attachment for PE-C195, PE-P195, RG58, RG141, RG303, LMR-195, 0.195 inch from
Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Crimp/Solder Attachment for PE-C195, PE-P195, RG58, RG141, RG303,
LMR-195, 0.195 inch PE44532

URL: https://www.pasternack.com/n-female-standard-pe-c195-0.195-connector-pe44532-p.aspx
