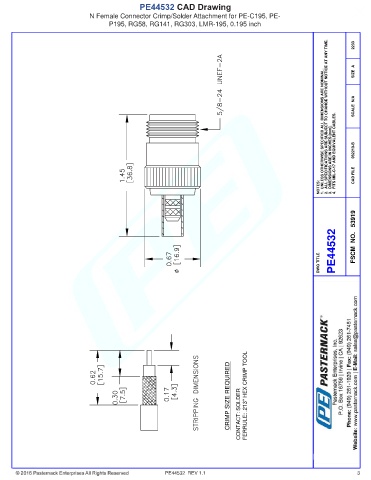

PE44532 CAD Drawing
N Female Connector Crimp/Solder Attachment for PE-C195, PE-
P195, RG58, RG141, RG303, LMR-195, 0.195 inch
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2233
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 032213-B
NOTES: CAD FILE
PE44532 FSCM NO. 53919
DWG TITLE
CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .213" HEX CRIMP TOOL
PE44532 REV 1.1 3
