N Female Connector Clamp/Solder Attachment
for RG213, RG214, RG8, RG9, RG11, RG225,
RG393, RG144, RG216, RG215

RF Connectors

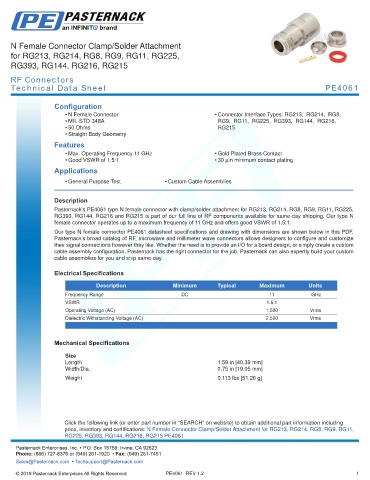

Technical Data Sheet PE4061

Configuration
• N Female Connector • Connector Interface Types: RG213, RG214, RG8,
• MIL-STD-348A RG9, RG11, RG225, RG393, RG144, RG216,
• 50 Ohms RG215
• Straight Body Geometry
Features
• Max. Operating Frequency 11 GHz • Gold Plated Brass Contact
• Good VSWR of 1.5:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4061 type N female connector with clamp/solder attachment for RG213, RG214, RG8, RG9, RG11, RG225,
RG393, RG144, RG216 and RG215 is part of our full line of RF components available for same-day shipping. Our type N
female connector operates up to a maximum frequency of 11 GHz and offers good VSWR of 1.5:1.
Our type N female connector PE4061 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
VSWR 1.5:1
Operating Voltage (AC) 1,500 Vrms
Dielectric Withstanding Voltage (AC) 2,500 Vrms
.

Mechanical Specifications

Size
Length 1.59 in [40.39 mm]
Width/Dia. 0.75 in [19.05 mm]
.
Weight 0.113 lbs [51.26 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Female Connector Clamp/Solder Attachment for RG213, RG214, RG8, RG9, RG11,
-
RG225, RG393, RG144, RG216, RG215 PE4061 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4061 REV 1.2 1
