N Female Connector Crimp/Solder Attachment
for RG188-DS, RG316-DS

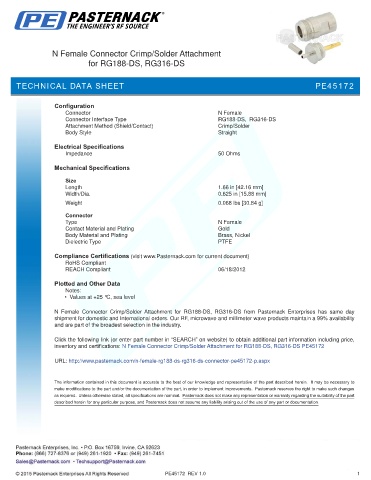

TECHNICAL DATA SHEET PE45172

Configuration
Connector N Female
Connector Interface Type RG188-DS, RG316-DS
Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight

Electrical Specifications
Impedance 50 Ohms

Mechanical Specifications
Size
Length 1.66 in [42.16 mm]
Width/Dia. 0.625 in [15.88 mm]
.
Weight 0.068 lbs [30.84 g]

Connector
Type N Female
Contact Material and Plating Gold
Body Material and Plating Brass, Nickel
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant
REACH Compliant 06/18/2012

Plotted and Other Data
Notes:
• Values at +25 °C, sea level

N Female Connector Crimp/Solder Attachment for RG188-DS, RG316-DS from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Crimp/Solder Attachment for RG188-DS, RG316-DS PE45172

URL: http://www.pasternack.com/n-female-rg188-ds-rg316-ds-connector-pe45172-p.aspx

PE45172 REV 1.0 1
