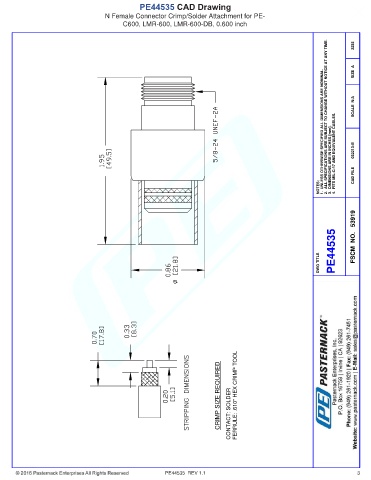

PE44535 CAD Drawing
N Female Connector Crimp/Solder Attachment for PE-
C600, LMR-600, LMR-600-DB, 0.600 inch
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2233
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 032213-B
NOTES: CAD FILE
PE44535 FSCM NO. 53919
DWG TITLE
CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .610" HEX CRIMP TOOL
PE44535 REV 1.1 3
