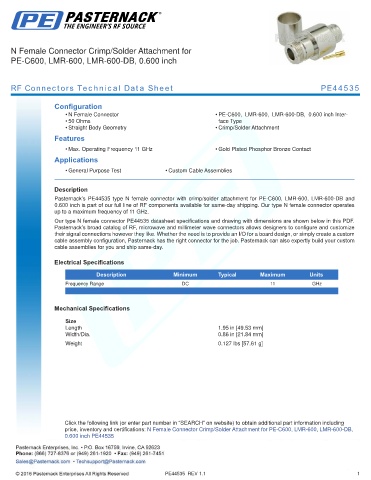

N Female Connector Crimp/Solder Attachment for
PE-C600, LMR-600, LMR-600-DB, 0.600 inch

RF Connectors Technical Data Sheet PE44535

Configuration
• N Female Connector • PE-C600, LMR-600, LMR-600-DB, 0.600 inch Inter-
• 50 Ohms face Type
• Straight Body Geometry • Crimp/Solder Attachment
Features
• Max. Operating Frequency 11 GHz • Gold Plated Phosphor Bronze Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44535 type N female connector with crimp/solder attachment for PE-C600, LMR-600, LMR-600-DB and
0.600 inch is part of our full line of RF components available for same-day shipping. Our type N female connector operates
up to a maximum frequency of 11 GHz.
Our type N female connector PE44535 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
.

Mechanical Specifications

Size
Length 1.95 in [49.53 mm]
Width/Dia. 0.86 in [21.84 mm]
.
Weight 0.127 lbs [57.61 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: N Female Connector Crimp/Solder Attachment for PE-C600, LMR-600, LMR-600-DB,
0.600 inch PE44535

PE44535 REV 1.1 1
