N Female Connector Crimp/Solder Attachment For
RG223, RG142, RG400, RG55, White Bronze

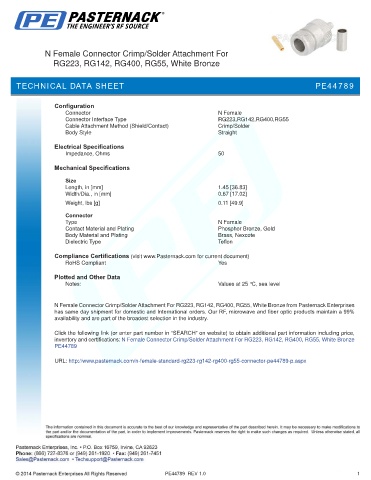

TECHNICAL DATA SHEET PE44789

Configuration
Connector N Female
Connector Interface Type RG223,RG142,RG400,RG55
Cable Attachment Method (Shield/Contact) Crimp/Solder
Body Style Straight

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Size
Length, in [mm] 1.45 [36.83]
Width/Dia., in [mm] 0.67 [17.02]
.
Weight, lbs [g] 0.11 [49.9]

Connector
Type N Female
Contact Material and Plating Phosphor Bronze, Gold
Body Material and Plating Brass, Nexcote
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level

N Female Connector Crimp/Solder Attachment For RG223, RG142, RG400, RG55, White Bronze from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Crimp/Solder Attachment For RG223, RG142, RG400, RG55, White Bronze
PE44789

URL: http://www.pasternack.com/n-female-standard-rg223-rg142-rg400-rg55-connector-pe44789-p.aspx

PE44789 REV 1.0 1
