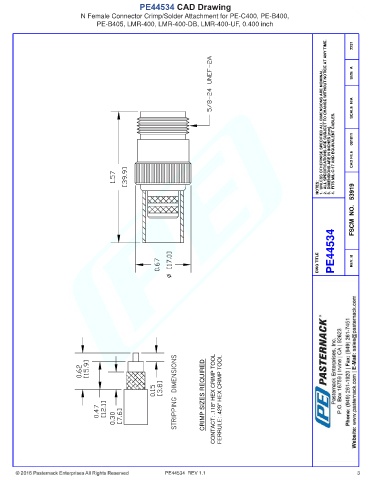

PE44534 CAD Drawing
N Female Connector Crimp/Solder Attachment for PE-C400, PE-B400,
PE-B405, LMR-400, LMR-400-DB, LMR-400-UF, 0.400 inch
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2231
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 081811 CAD FILE
NOTES:
FSCM NO. 53919
PE44534
DWG TITLE REV. B
CRIMP SIZES REQUIRED CONTACT: .118" HEX CRIMP TOOL FERRULE: .429" HEX CRIMP TOOL
PE44534 REV 1.1 3
