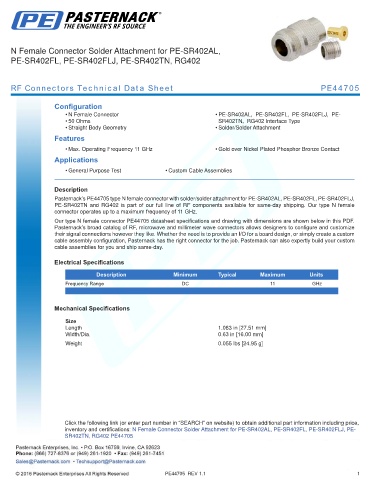

N Female Connector Solder Attachment for PE-SR402AL,
PE-SR402FL, PE-SR402FLJ, PE-SR402TN, RG402

RF Connectors Technical Data Sheet PE44705

Configuration
• N Female Connector • PE-SR402AL, PE-SR402FL, PE-SR402FLJ, PE-
• 50 Ohms SR402TN, RG402 Interface Type
• Straight Body Geometry • Solder/Solder Attachment
Features
• Max. Operating Frequency 11 GHz • Gold over Nickel Plated Phosphor Bronze Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44705 type N female connector with solder/solder attachment for PE-SR402AL, PE-SR402FL, PE-SR402FLJ,
PE-SR402TN and RG402 is part of our full line of RF components available for same-day shipping. Our type N female
connector operates up to a maximum frequency of 11 GHz.
Our type N female connector PE44705 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 11 GHz
.

Mechanical Specifications

Size
Length 1.083 in [27.51 mm]
Width/Dia. 0.63 in [16.00 mm]
.
Weight 0.055 lbs [24.95 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Solder Attachment for PE-SR402AL, PE-SR402FL, PE-SR402FLJ, PE-
SR402TN, RG402 PE44705

PE44705 REV 1.1 1
