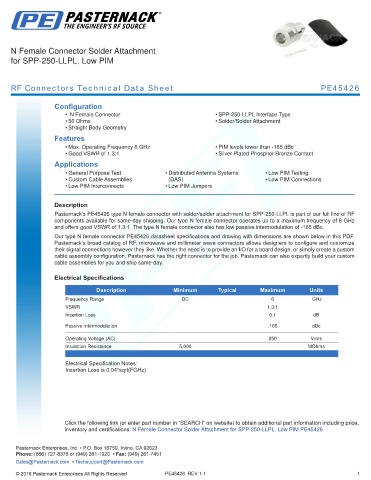

N Female Connector Solder Attachment
for SPP-250-LLPL, Low PIM

RF Connectors Technical Data Sheet PE45426

Configuration
• N Female Connector • SPP-250-LLPL Interface Type
• 50 Ohms • Solder/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 6 GHz • PIM levels lower than -165 dBc
• Good VSWR of 1.3:1 • Silver Plated Phosphor Bronze Contact
Applications
• General Purpose Test • Distributed Antenna Systems • Low PIM Testing
• Custom Cable Assemblies (DAS) • Low PIM Connections
• Low PIM Interconnects • Low PIM Jumpers
.
Description
Pasternack’s PE45426 type N female connector with solder/solder attachment for SPP-250-LLPL is part of our full line of RF
components available for same-day shipping. Our type N female connector operates up to a maximum frequency of 6 GHz
and offers good VSWR of 1.3:1. The type N female connector also has low passive intermodulation of -165 dBc.
Our type N female connector PE45426 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.3:1
Insertion Loss 0.1 dB
Passive Intermodulation -165 dBc

Operating Voltage (AC) 250 Vrms
Insulation Resistance 5,000 MOhms
.
Electrical Specification Notes:
Insertion Loss is 0.04*sqrt(FGHz)
.
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Solder Attachment for SPP-250-LLPL, Low PIM PE45426 -
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45426 REV 1.1 1
