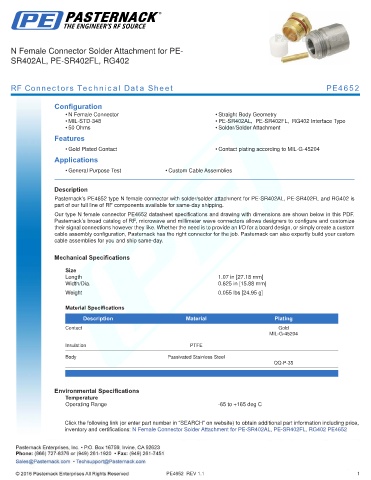

N Female Connector Solder Attachment for PE-
SR402AL, PE-SR402FL, RG402

RF Connectors Technical Data Sheet PE4652

Configuration
• N Female Connector • Straight Body Geometry
• MIL-STD-348 • PE-SR402AL, PE-SR402FL, RG402 Interface Type
• 50 Ohms • Solder/Solder Attachment
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4652 type N female connector with solder/solder attachment for PE-SR402AL, PE-SR402FL and RG402 is
part of our full line of RF components available for same-day shipping.
Our type N female connector PE4652 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.07 in [27.18 mm]
Width/Dia. 0.625 in [15.88 mm]
.
Weight 0.055 lbs [24.95 g]
.
Material Specifications
Description Material Plating
Contact Gold
MIL-G-45204
Insulation PTFE

Body Passivated Stainless Steel
QQ-P-35
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Solder Attachment for PE-SR402AL, PE-SR402FL, RG402 PE4652

PE4652 REV 1.1 1
