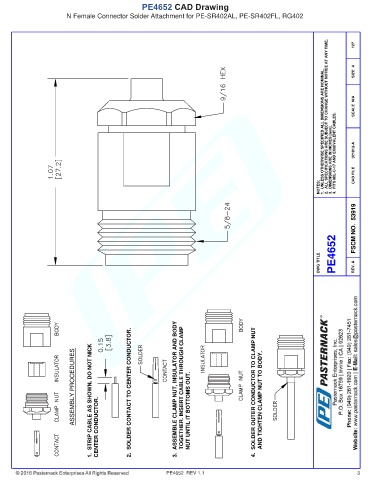

PE4652 CAD Drawing
N Female Connector Solder Attachment for PE-SR402AL, PE-SR402FL, RG402
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 021813-A
NOTES: CAD FILE
FSCM NO. 53919
DWG TITLE PE4652 REV. A
ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN. DO NOT NICK 2. SOLDER CONTACT TO CENTER CONDUCTOR. 3. ASSEMBLE CLAMP NUT, INSULATOR AND BODY TOGETHER. INSERT CABLE THROUGH CLAMP 4. SOLDER OUTER CONDUCTOR TO CLAMP NUT AND TIGHTEN CLAMP NUT TO BODY.
CENTER CONDUCTOR. NUT UNTIL IT BOTTOMS OUT.
PE4652 REV 1.1 3
