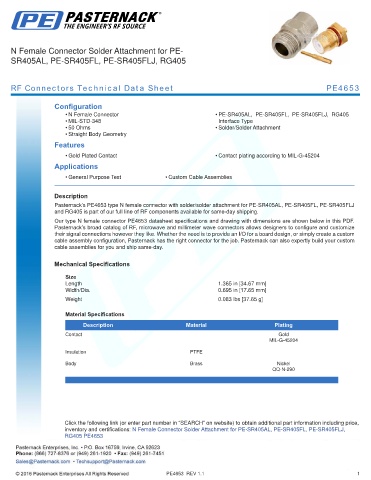

N Female Connector Solder Attachment for PE-
SR405AL, PE-SR405FL, PE-SR405FLJ, RG405

RF Connectors Technical Data Sheet PE4653

Configuration
• N Female Connector • PE-SR405AL, PE-SR405FL, PE-SR405FLJ, RG405
• MIL-STD-348 Interface Type
• 50 Ohms • Solder/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4653 type N female connector with solder/solder attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ
and RG405 is part of our full line of RF components available for same-day shipping.
Our type N female connector PE4653 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 1.365 in [34.67 mm]
Width/Dia. 0.695 in [17.65 mm]
.
Weight 0.083 lbs [37.65 g]
.
Material Specifications
Description Material Plating
Contact Gold
MIL-G-45204
Insulation PTFE
Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Connector Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ,
RG405 PE4653

PE4653 REV 1.1 1
