N Female Precision Connector Solder Attachment
For PE-047SR, PE-SR047AL, PE-SR047FL

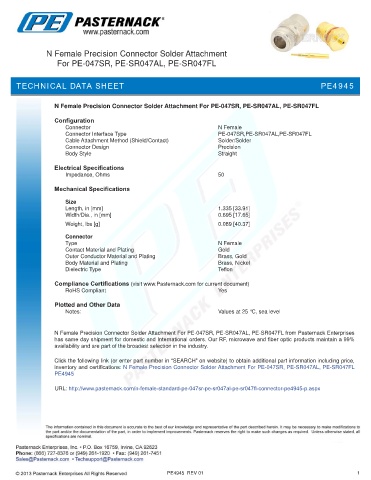

TECHNICAL DATA SHEET PE4945

N Female Precision Connector Solder Attachment For PE-047SR, PE-SR047AL, PE-SR047FL

Configuration
Connector N Female
Connector Interface Type PE-047SR,PE-SR047AL,PE-SR047FL
Cable Attachment Method (Shield/Contact) Solder/Solder
Connector Design Precision
Body Style Straight

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications

Size
Length, in [mm] 1.335 [33.91]
Width/Dia., in [mm] 0.695 [17.65]
.
Weight, lbs [g] 0.089 [40.37]
Connector
Type N Female
Contact Material and Plating Gold
Outer Conductor Material and Plating Brass, Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Plotted and Other Data
Notes: Values at 25 °C, sea level
