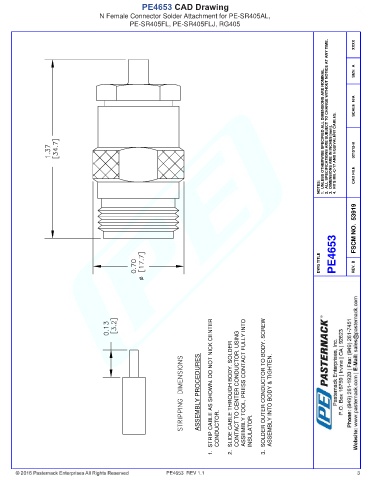

PE4653 CAD Drawing
N Female Connector Solder Attachment for PE-SR405AL,
PE-SR405FL, PE-SR405FLJ, RG405
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 021513-B
NOTES: CAD FILE
FSCM NO. 53919
DWG TITLE PE4653 REV. B
ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN. DO NOT NICK CENTER CONDUCTOR. 2. SLIDE CABLE THROUGH BODY. SOLDER CONTACT TO CENTER CONDUCTOR. USING ASSEMBLY TOOL, PRESS CONTACT FULLY INTO INSULATOR. 3. SOLDER OUTER CONDUCTOR TO BODY. SCREW ASSEMBLY INTO BODY & TIGHTEN.
PE4653 REV 1.1 3
